MINIATURE CONNECTOR QUALIFIED TO JAN1003

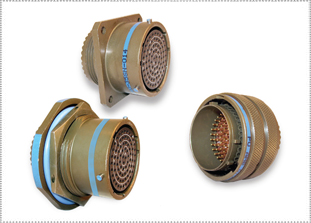

Amphenol’s SJT series of miniature MIL-DTL-38999 Type 1.5 circular connectors offer high-density contact arrangements. Amphenol SJT connectors are environmentally-sealed and have a wide operating temperature range. These Amphenol SJT connectors meet the requirements of VG96912, are qualified to JAN1003 and are NATO-standard. Amphenol SJT connectors are commonly called 38999 series 1.5.

Amphenol 38999 SJT Section Catalogue
