HIGH RELIABILITY AND EMI-SHIELDING IN EXTREME ENVIRONMENTS

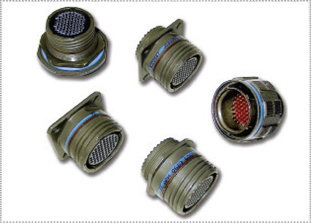

Amphenol‘s TV-CTV Tri-Start MIL-DTL-38999 Series III connectors have high-density contact arrangements in a miniature circular shell. Originally designed for the high-performance requirements of military and commercial aircraft, these circular connectors are perfect for applications requiring extremely reliable interconnections. Amphenol TV-CTV connectors are quick-mating and environmentally-sealed. See our full list of product features for Amphenol TV-CTV Tri-Start connectors in the specifications below.

AMPHENOL TV-CTV FEATURES

- High-Reliability
  D38999 – TV style connectors are used in some of the most rigorous environments and must perform flawlessly under wide temperature ranges, high vibrations and be resistant to a vast array of contaminants. Visual confirmation of mating is provided by the plug coupling nut covering a red band on the mating shell.

- Outstanding EMI-Shielding Protection
  These connectors provide excellent signal integrity due to the shielded mating system that utilizes 360-degree shell grounding fingers, providing protection of up to 65 dB at 10 GHz.

- Operates at Extreme Temperatures
  These connectors operate in temperatures from -85°F to +392°F (-65°C to +200°C).

- High-Density Connectors
  If space is at a premium, TV connectors offer up to 128 contacts per connector. Ideally suited for the demands of digital electronics on fly-by wire aircraft, advanced robotics, and critical industrial equipment.

- Self-Locking Connector Systems
  Self-locking coupling nuts and self-locking endbell accessory hardware provide the best performance for threaded connectors in high-vibration applications.

- Broad Range of Military and Commercial Accessories
  Many military-standard endbells to M85049 specifications and a wide array of cable termination styles are available. Straight, 45 and 90-degree endbells come in many styles from cost-effective standard clamp to shielded, environmentally-sealed and everything in between.

- Contact Protection
  TV connectors are designed to be scoop-proof. Pin contacts are recessed to prevent contact damage and contact shorting when connector halves are mated.

- MIL-DTL-38999-Approved
  TV’s are fully-intermatable and intermountable with all other manufacturer’s MIL-DTL-38999 series III connectors.

Ground Plane options are now available.

Amphenol TV-CTV Catalogue
