DMC2268

Wiring service kit for Airbus H130

SKU: DMC2268 Category:

Description

THE MAINTENANCE PROBLEM…
Modern aircraft, such as the Airbus H130 (Formerly Eurocopter EC130), have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools.
It is not a cost effective use of the time of your technical staff to start from scratch and try to become intimately knowledgeable about which precision tools must be used to repair each electrical connector, contact and terminal when DMC has already performed this task for the Airbus H130.

AOG TIME CONSTRAINTS. Once the aircraft becomes inoperable
because of a connector failure, it is imperative to be able to replace the connector, contact or terminal as quickly as possible to avoid revenue loss due to AOG. The DMC2268 kit supplies your staff with both the information and the tools necessary to make this type of repair to the Airbus H130 in the shortest time possible.

THE DMC SOLUTION…

TOOLING RESEARCH. DMC has already researched the list of connectors for the Airbus H130 and has identified the most common tools required to maintain the electrical connectors in these aircraft. DMC has cross referenced tools to the connectors, contacts and terminals eliminating costly and time-consuming research which would otherwise have to be performed by your local technicians.

IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION. The DMC2268 kit contains all of the tooling to connector, contact and terminal cross reference information needed to support the Airbus H130. In addition, the kit also contains illustrated operating instructions for the required tooling.

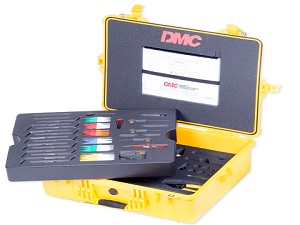

ALL IN ONE. Since these tools, together with their operating instructions, are contained in two, environmentally sealed, high-impact copolymer cases, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your aircraft to service. Tool kit includes: Name Plate, Foam Pads/Inserts, Contents Charts, Instruction Charts, and Tool Selection Charts.

DMC2268 TOOL AND ACCESSORY LIST
7 Crimp Tools
4 Turret Heads
14 Positioners
1 Single Position Head
4 Die Sets
9 Metal Insertion Tools
10 Metal Removal Tools
43 Plastic Ins/Rem Tools
4 Contact gages
3 Unwired Contact Removal Tools w/ Probes
1 Wire Cutter
2 Wire Strippers
3 In-Service Inspection Gages
1 Die Removal Tool
1 Hex Wrench
1 Wire Harness Spoon

DMC2268 CONNECTOR COVERAGE
MANUFACTURERSERIES
AmphenolRF Coax
Glenair Mighty Mouse
Rockwell D-Sub
Souriau8635
MIL-C-50153450
AirbusABS1547
EN 3645, 4652, 4165
EurocopterECS0727, ECS0847, 5106EC8
NSA937901
ASNE 0052, 0053, 0362, 0461, 0605, 0656, 0709, 3545
