Description
THE MAINTENANCE PROBLEM…
Modern aircraft have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools. It is not a cost effective use of the time of your technical staff to start from scratch and try to become intimately knowledgeable about which precision tools must be used to repair each electrical connector, contact and terminal when DMC has already performed this task for common Mil-Spec contacts.
AOG TIME CONSTRAINTS.
Once the aircraft becomes inoperable because of a connector failure, it is imperative to be able to replace the connector, contact or terminal as quickly as possible to avoid revenue loss or loss of mission capability due to AOG. The DMC286-02 kit supplies your staff with both the information and the tools necessary to make this type of repair in the shortest time possible.
THE DMC SOLUTION…
TOOLING RESEARCH. DMC has already identified the most common tools required to maintain the common MilSpec electrical connectors. DMC has cross referenced these tools to the connectors, contacts and terminals, eliminating costly and time-consuming research which would otherwise have to be performed by your electrical technicians.
IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION. The DMC286-02 kit contains all of the tooling to connector, contact and terminal cross reference information needed. In addition, the DMC286-02 kit also contains illustrated operating instructions for the required tooling. ALL IN ONE. Since all of these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your aircraft to service.

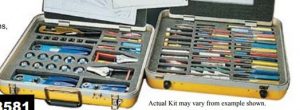

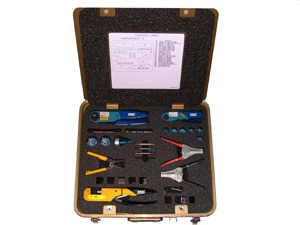

DMC286-02 TOOL AND ACCESSORY LIST
3 Crimp Tools
2 Turret Heads
6 Positioners
1 Universal Turret Head
14 Metal Insertion Tools
14 Metal Removal Tools
65 Plastic Ins/Rem Tools
4 Contact gages
2 Unwired Contact Removal Tools
w/ Probes
1 Wire Cutter
2 Wire Strippers
1 In-Service Inspection Gage
1 Hex Wrench
8 Die Sets
1 Die Removal Tool
DMC286-02 CONNECTOR COVERAGE
MANUFACTURER SERIES
MIL-C-5015 3400 Series
MIL-C-5015 3450 Series
MIL-C-38999 Series I, II, III, IV
MIL-C-83723 Series I, II, III
MIL-C-81703 Series II & III
MIL-C-26482 Series I & II
MIL-T-7928 Splices & Terminals
MIL-C-24308 Miniature Rack & Panel
MIL-C-26500 Firewall Connectors
MIL-C-39012 RF Coaxial

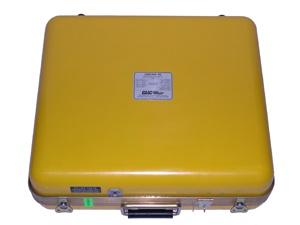

TOOL KIT CONFIGURATION
Type of Case Portable
Number of Cases 1
Color Yellow
Type of Construction Fiberglass/Aluminum
Application General Aviation
Coverage Airframe Power Connectors
Terminals size 12 AWG
and Smaller
Coaxial Connectors
Type of Inserts Unicellular Polyethylene Foam with Die Cut Tool Cavities
