DMC519

SKU: DMC519 Category:

Description

THE MAINTENANCE PROBLEM…
Modern aircraft, such as the AIRBUS A318, A319, A320, A321, A330, A340, have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools.

THE DMC SOLUTION…

IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION.

DMC Wiring System Service Kits provide, in a single, well organized location, the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC519 kit contains the tooling to connector, contact and terminal cross reference information which indicate the particular tool(s) that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.

ALL IN ONE.

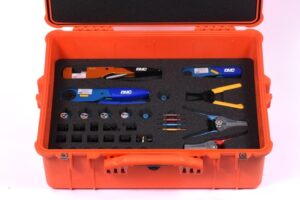

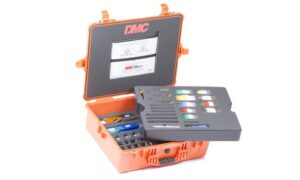

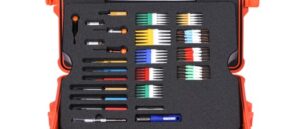

Since these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your aircraft to service. Tool kit supplied in 1 environmentally sealed Ultra High Impact Copolymer case and includes: Name Plate, Foam Pads/Inserts, Contents Charts, Instruction Charts, and Tool Selection Charts.

DMC519 TOOL AND ACCESSORY LIST
3 Crimp Tools
4 Turret Heads
13 Positioners
2 Single Position Heads
3 Metal Insertion Tools
4 Metal Removal Tools
45 Plastic Ins/Rem Tools
4 Contact gages
3 Unwired Contact Removal Tools
w/ Probes
1 Wire Cutter
2 Wire Strippers
1 In-Service Inspection Gage
1 Die Removal Tool
11 Die Sets
2 Hex Wrench
1 X-acto Knife
1 Polarization Post Tool
1 Split Nut Tool

DMC519 CONNECTOR COVERAGE
MANUFACTURER SERIES
Air LB Junction Modules, Relay Sockets
AMP HD-22, RME Series, RF Coaxial,
PIDG Insulated Terminals/Splices,
Solistrand Uninsulated Terminals/
Splieces
Connectral 208 Series, Relay Sockets
Deutsch DBA, FDBA, 992, 983
ITT Cannon BKAE/D, DPX, DPXMA, PVW,
HTAMF Series
Jupiter JAR, JA, JAM Series
Matrix Science MB, MB92, NSA93815 Series
Radiall NSX, DSX Series
Socapex RJT, JT Series
Souriau 8525, 8526, S600, 8533, 8665, 8T,
8559
Arinc 600 Rack and Panel
MIL-C-26500 Firewall Connectors

TOOL KIT CONFIGURATION
Type of Case Portable
Number of Cases 1
Color Orange
Type of Construction Ultra High Impact Copolymer
Application A318, A319,A 320, A321, A330,
A340
Coverage Airframe Power Connectors
Terminals size 12 AWG
and Smaller
Coaxial Connectors
Type of Inserts Unicellular Polyethylene Foam with Die Cut Tool Cavities
