DMC737

TOOL KIT FOR BELL HELICOPTER

SKU: DMC737 Category:

Description

THE MAINTENANCE PROBLEM…
Modern aircraft, such as Bell Helicopters, have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools.

THE DMC SOLUTION…
IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION.

DMC Wiring System Service Kits provide, in a single, well organized location, the tools necessary to strip, crimp, install and remove the typical contacts and terminals of this wiring system. The DMC737 kit contains the tooling to connector, contact and terminal cross reference information which indicate the particular tool(s)?that should be selected to repair a specific connector, contact, or terminal. In addition, the kit also contains illustrated operating instructions for the required tooling.

ALL IN ONE.

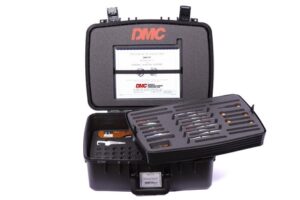

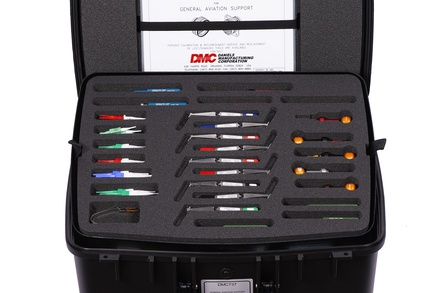

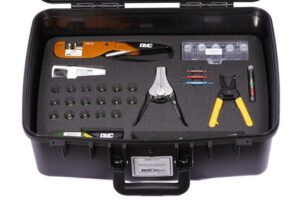

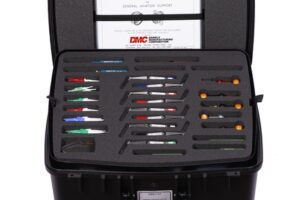

Since these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your aircraft to service. Tool kit supplied in 1 environmentally sealed fiberglass case and includes: Name Plate, Foam Pads/Inserts, Contents Charts, Instruction Charts, and Tool



DMC737 TOOL AND ACCESSORY LIST
2 Crimp Tools
17 Positioners
9 Metal Insertion Tools
9 Metal Removal Tools
30 Plastic Ins/Rem Tools
3 Contact gages
4 Unwired Contact Removal Tools
w/ Probes
1 Wire Cutter
1 Wire Strippers
1 In-Service Inspection Gage
2 Module Removal Tools
1 Illuminated Magnifier
1 Solder Iron
1 Solder Tip

DMC737 CONNECTOR COVERAGE

MANUFACTURER SERIES
MIL-C-24308 Rack and Panel
MIL-C-26482 Series 1 and 2
MIL-C-26500 Firewall Connectors
MIL-C-26518 Rack and Panel
MIL-C-28748 Rack and Panel
MIL-C-38300 Circular
MIL-C-38999 Series 1, 2, 3 and 4
MIL-C-5015 3400 and 3450 Series
MIL-C-81511 Series 3 & 4
MIL-C-81703 Series 2 & 3
MIL-C-83723 Series 1, 2 and 3
MIL-C-83733 Rack and Panel
MIL-T-7928 Insulated Terminals and Splices
MIL-T-81714 Terminal Junctions
MIL-STD-1549 Terminal Junctions
DEUTSCH “DS” Series

TOOL KIT CONFIGURATION
Type of Case Portable
Number of Cases 1
Color Black
Type of Construction Polypropylene
Application General Aviation Kit
for Bell Helicopters
Coverage Airframe Power Connectors
Terminals size 12 AWG
and Smaller
Coaxial Connectors
Type of Inserts Unicellular Polyethylene Foam with Silhouetted Tool Cavities
