DMC899

DMC899 ATR-42/72 MAINTENANCE KIT?For Electrical Connectors and Wiring Systems

SKU: DMC899 Category:

Description

DMC899 ATR-42/72 MAINTENANCE KIT?For Electrical Connectors and Wiring Systems



THE MAINTENANCE PROBLEM…
Modern aircraft, such as the ATR-42/72, have complicated electrical wiring systems containing many different connectors, contacts and terminals, the repair of which require precision tools.
It is not a cost effective use of the time of your technical staff to start from scratch and try to become intimately knowledgeable about which precision tools must be used to repair each electrical connector, contact and terminal when DMC has already performed this task for the ATR-42/72.

AOG TIME CONSTRAINTS.
Once the aircraft becomes inoperable because of a connector failure, it is imperative to be able to replace the connector, contact or terminal as quickly as possible to avoid revenue loss due to AOG. The DMC899 kit supplies your staff with both the information and the tools necessary to make this type of repair to the ATR-42/72 in the shortest time possible.

THE DMC SOLUTION…

TOOLING RESEARCH.
DMC has already researched the list of connectors for the ATR-42/72 and has identified the most common tools required to maintain the electrical connectors in the ATR-42/72. DMC has cross referenced these tools to the connectors, contacts and terminals, eliminating costly and time-consuming research which would otherwise have to be performed by your electrical technicians.

IMMEDIATE AVAILABILITY OF TOOLS AND TECHNICAL INFORMATION.

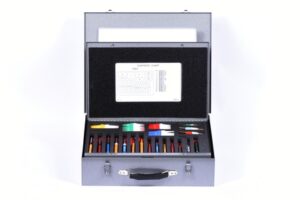

The DMC899 kit contains all of the tooling to connector, contact and terminal cross reference information needed to support the ATR-42/72. In addition, the DMC899 kit also contains illustrated operating instructions for the required tooling.

ALL IN ONE.
Since all of these tools, together with their operating instructions, are contained in a single kit, the connector repair can be made in the shortest time possible, thus permitting a rapid return of your ATR-42/72 to service.

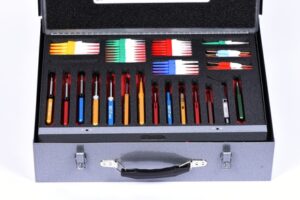

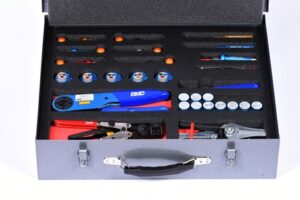

DMC899 TOOL AND ACCESSORY LIST
3 Crimp Tools
5 Turret Heads
10 Positioners
9 Metal Insertion Tools
12 Metal Removal Tools
66 Plastic Ins/Rem Tools
3 Unwired Contact Removal Tools w/ Probes
1 Wire Cutter
2 Wire Strippers
1 In-Service Inspection Gage
1 Hex Wrench

DMC899 CONNECTOR COVERAGE
MANUFACTURER?SERIES
AMP RME
Deutsch DS, DBA, FDBA, 951
Amphenol 48, 418
ITT Cannon D*MA, DPA, DSX*MA, KJL, PVW
Bendix LJT
Flight FC/FH/FZ
Pyle National ZZ
Socapex 45, LJT
Souriau 851, 852, 892
Arinc 600 Rack & Panel
MIL-C-26482 I
MIL-C-26500 Firewall Connectors

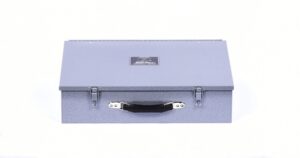

TOOL KIT CONFIGURATION
Type of Case:?Portable
Number of Cases: 1
Colour:?Grey
Type of Construction:?Steel
Application:?ATR-42/72
Coverage:?Airframe Power Connectors.?Terminals size 12 AWG?and Smaller,?Coaxial Connectors
Type of Inserts:?Unicellular Polyethylene Foam with Die Cut Tool Cavities
