UH2-5

UH2-5 Universal Head (M22520/1-05)

Add to quote

SKU: M22520/1-05 Categories: AF8 - Commercial Range, AF8 - Military Range

Description

Description

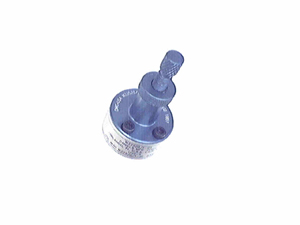

The UH2-5 (M22520/1-05) Universal Head is ideally suited to lab work and prototype production applications.

This head is attached in the same manner as all other turrets.

The selected contact is inserted through the entry hole on the opposite side of the tool frame from the head.

The height adjusting screw is then rotated until the contact is in the proper position for crimping. The screw can be secured with the locknut provided.

The wire sizes listed on the tool frame selector knob can be used as a reference starting point; however, some testing will be necessary to determine the optimum selector setting for your contact/wire combination.

NSN 5120-01-335-8583

UH2-5
