TA-1002

Description

• Eliminates hand held position error.
• DTS covers the most common torque ranges from 24 “in-lb” to 250 “ft-lb” and 3.4 to 340 “Nm”
• Drive sizes of 3/8, 1/2
• Torque and Angle function simultaneously.
• Instant gyro-synchronization when Torque Meter is turned on and ready to use.
• ±2% Accuracy of reading 10 to 100% of scale. Both directions, (Clockwise & Counter Clockwise)
• Angle presets from 5 to 360° Degrees.
• DTS manufacturers both the mechanical and electronic components.
• Torque Meter come in individual storage cases.
• Meets all industry standards for Torque Tools and supplied with certificates, (COC).

Torque & Angle Meters

Cost-effective Sensing and Measurement Electronics That Still Provide Double the Required Accuracy of the Service Industry.

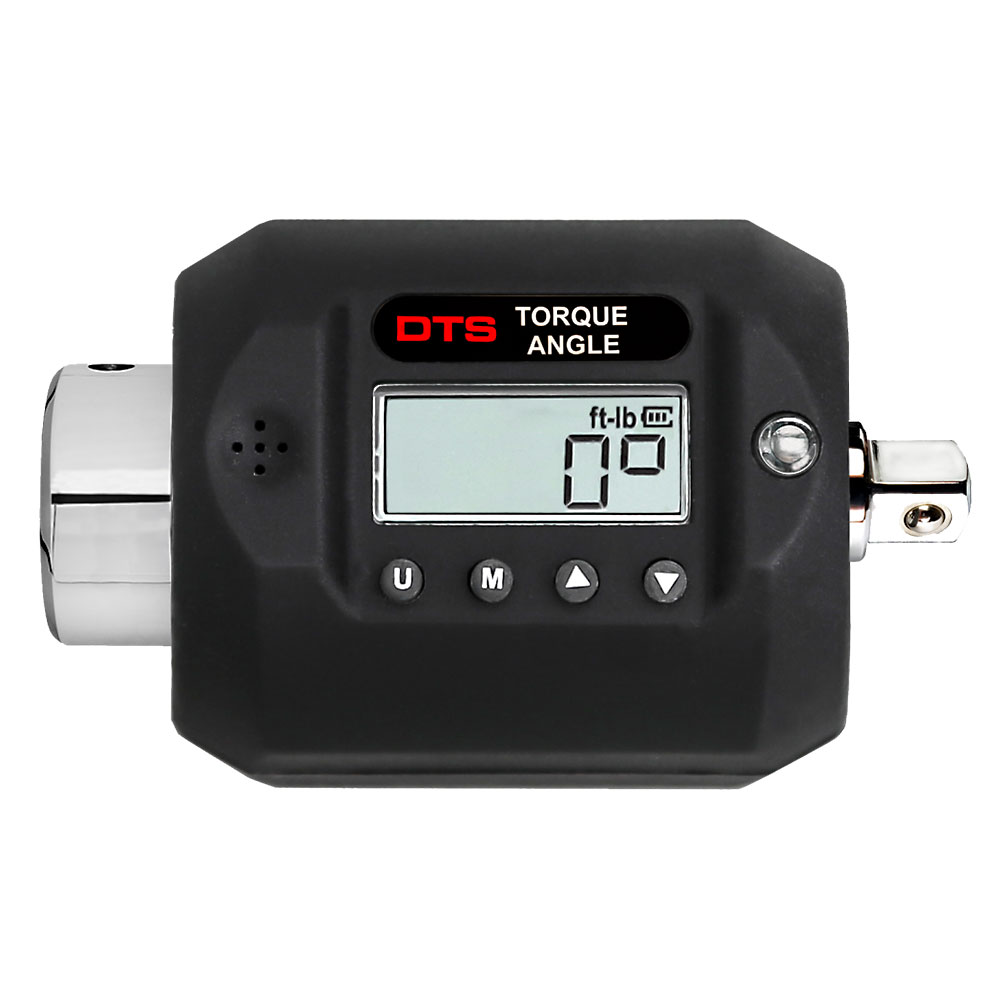

Low-cost Electronic Torque and Angle Meters

​The “TA” series of low-cost electronic torque and angle meters are suitable for automotive repair, light off-road equipment, lawn and garden service, and most do-it-yourself applications. Used with any wrench, socket driver, breaker bar or non-impacting power tool, it provides +/-2% torque accuracy, from 10% to 100% of full scale, and +/-1° @ a 90° rotation precision. The rotatable housing with in-line torque sensor eliminates hand-hold position error. The 4-digit display reflects the application of cost-effective sensing and measurement electronics that still provide double the required accuracy of the service industry. These meters use a conveniently replaceable 3-cell AAA Alkaline battery and feature the Digitool Solutions’ exclusive Extended Power Technology allowing up to 200 hours of continuous operation.
With the same robust design, functional features and intuitive user interface as the “PRO” models, each rotating TA meter provides adjustable torque and angle presets with tri-color visual, audible sounder and tactile vibration alerts. Four models are available, providing 2.5 ft-lb to 250 ft-lb torque capacity with ISO and ASME Standard square drive sizes, are useful between 10% and 100% of full scale torque and between 5° and 180° angular rotation. Torque reading starts at 5% of full scale.
Each meter is compliance with ISO-6789-2003, ASME B107.28-2005 (Type 2) Standards and N.I.S.T.

A certification of calibration can be provided if requested.
