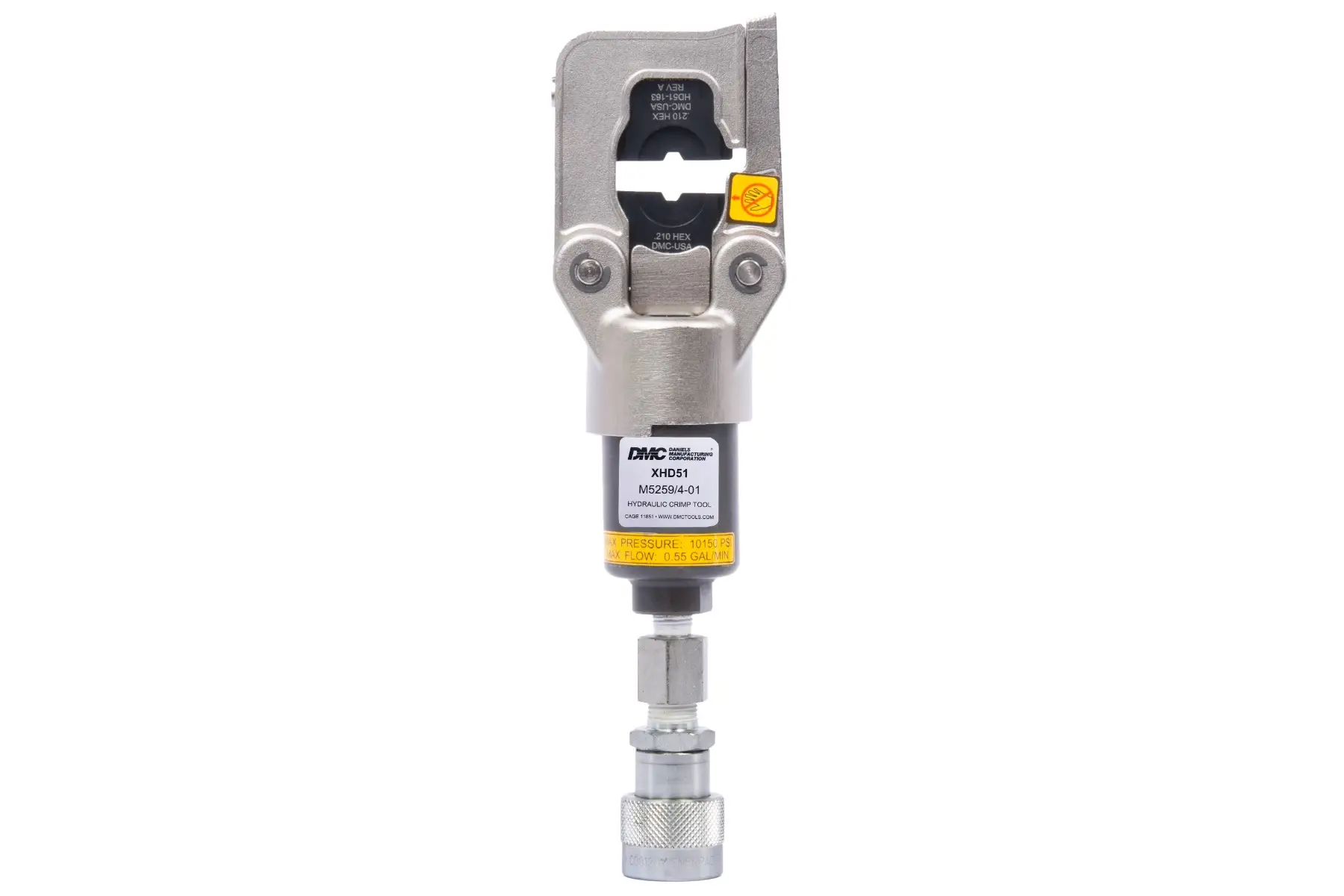

XHD51

6 Ton Hydraulic Form Crimp Head for Use with HD51 Dies

Category: XHD51

Description

Description

The XHD51 remote hydraulic crimp head is the preferred solution for high-volume applications on production lines and maintenance rework centers. The crimp head can be mounted in a stationary position with a bench mount (Part # XHD51-BM), or used as a hand-held tool. A powered or manual pump provides hydraulic power to the remote crimping head.

Crimping Capabilities: Insulated terminals ranging from 8 to 2 AWG and uninsulated terminals ranging from 8 to 2/0 AWG.
Crimp Force: 6 Tons (58.83 kN)
L x W x H: 9 x 2 x 2.75 (in) 180.3 x 50.8 x 69.85 (mm)
Weight 3.85 pounds (1.74 kg)

The recommended hydraulic pump is the HPU11M air over the hydraulic-powered pump. Daniels also manufactures 2 manual hydraulic pumps HPU15M (foot pump) and HPU12M (hand pump) as well as a battery-powered pump, HPU13M.
