For M85049/128-3, /128-4, /128-7 & /128-8 Bands

Two-Step Tools The One-Step Band Application Tools are built to SAE AS81306/1 specifications and designed to install M85049/128-3, M85049/128-4, M85049/128-7, and M85049/128-8 “stamped buckle” bands. These tools are constructed to survive the demands of production and maintenance use, and remain precisely adjusted to provide a quality band termination.

The tension-lock system gives the operator a positive indication when the precise tension has been applied. The cut-off handle easily cuts, bends, and locks the shield band in one step.

FOR TOOL PROCEDURES, CLICK HERE

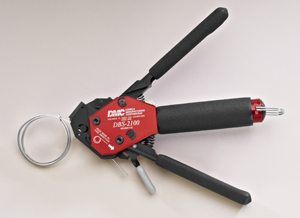

DBS-2100 .250 Wide Band Application Tool
(M81306/1A):

Size and Weight: 6.71″ x 6.75″ x .92″,
1.02 lbs.
Tension Range: 145–155 lbs.
Cut-off blades are replaceable with:
Blade Replacement Kit: DBS-2100-BRK

DBS-2200 .125 Wide Mini-Band Application Tool
(M81306/1B):

Size and Weight: 6.71″ x 6.75″ x .92″,
1.02 lbs.
Tension Range: 75–85 lbs.
Cut-off blades are replaceable with:
Blade Replacement Kit: DBS-2200-BRK

VERIFICATION OF ONE-STEP EMI/RFI BAND TOOLS
M81306/1C & M81306/1D

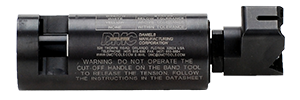

Field Verification Inspection Gages are available to check the tension of the DMC One-Step Band Tools. These gages have a precise compression mechanism which has a sequence of indicators to verify that the applied tension is within the specified range for the band which is being applied. It is recommended to check the tension periodically, and if it needs adjustment, the instructions and accessories are provided by DMC for that purpose. The .250 width band tool (DBS-2100 Series) requires the DBS-CG7(M81306/1C) gage, and the .125 width band tool (DBS-2200 Series) requires the DBS-CG8 (M81306/1D) gage.

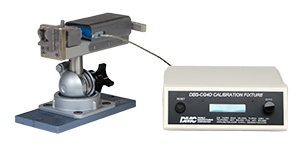

DMC also offers an Electronic Calibration Instrument for Calibration Laboratory operations. The DBS-CG4D Electronic Calibration Instrument will allow the operator to gage the exact tension produced by the tool, and therefore, one instrument can be used with either the .250 band width tool, or the .125 band width tool. This instrument is calibrated by DMC, and traceable to NIST.

Use verification equipment in accordance with DMC instructions DBS-CG7-DS, DBS-CG8-DS or DBS-CG4D-DS.

The DMC2058A One-Step Band Installation Kit

The DMC2058A is an all inclusive One-step Band Installation Kit. It provides your service technicians with both the DBS-2100 (M81306/1A) .250” Wide Band Application Tool and the DBS-2200 (M81306/1B) .125” Wide Mini-Band Application Tool, along with stamped buckle bands, and all accessories needed to terminate bands.

Also included are all calibration, support accessories, and illustrated operating instructions for all the tooling included.

The DMC2058A kit is equipped to install all M85049/128-3,-4 (.250 Wide) and M85049/128-7, -8 (.125 Wide) stamped EMI/RFI shield bands.

DMC2058A Contents:

DBS-2102 (M81306/1-01)
DBS-2202 (M81306/1-02)
DBS-128-3 (10 Pcs)
DBS-128-7 (10 Pcs)

AS85049/128 TOOL IDENTIFICATION CHART
TOOL P/N	DESCRIPTION	WIDTH	DMC P/N	APPLICATION
M81306/1-01	Set: One-Step Tool, Gage, and Tension Key	.250	DBS-2102	M85049/128-3 & -4
M81306/1-02	Set: One-Step Tool, Gage, and Tension Key	.125	DBS-2202	M85049/128-7 & -8
M81036/1A	One-Step Band Tool	.250	DBS-2100	M85049/128-3 & -4
M81036/1B	One-Step Band Tool	.125	DBS-2200	M85049/128-7 & -8
M81036/1C	Verification Inspection Gage	.250	DBS-CG5	DBS-2100
M81036/1D	Verification Inspection Gage	.125	DBS-CG6	DBS-2200
M81036/1E	Tension Adjustment Key	.125 & .250	DBS-2100-32	DBS-2100 & DBS-2200

AS85049/128 BAND IDENTIFICATION CHART
BAND MIL P/N	CONFIGURATION	WIDTH	DMC P/N	TERMINATE WITH
M85049/128-3	Stamped Buckle, Flat, .250 wide x 14.25″ long	.250	DBS-128-3	One-Step Only
M85049/128-4	Stamped Buckle, Pre-Coiled, .250 wide x 14.25″ long	.250	DBS-128-4	One-Step Only
M85049/128-7	Stamped Buckle, Flat, .125 wide x 8.52″ long	.125	DBS-128-7	One-Step Only
M85049/128-8	Stamped Buckle, Pre-Coiled, .125 wide x 8.52″ long	.125	DBS-128-8	One-Step Only

ONE-STEP APPLICATION TOOLS, ACCESSORIES AND COMPONENTS
.250 Width Band Tools
DBS-2100	Hand Operated Band Tool (M81306/1A)
DBS-2102	Hand Operated Band Tool Set includes DBS-2100, DBS-2100-32, DBS-CG7 (M81306/1-01)
DBS-2100-32	Tension Adjustment Key (M81306/1E)
DBS-2100-SB	Replacement Stationary Blade for .250 Band Tools
DBS-2100-MB	Replacement Movable Blade for .250 Band Tools
.125 Width Mini-Band Tools
DBS-2200	Hand Operated Mini Band Tool (M81306/1B)
DBS-2202	Hand Operated Mini Band Tool Set includes DBS-2200, DBS-2100-32, DBS-CG8(M81306/1-02)
DBS-2100-32	Tension Adjustment Key (M81306/1E)
DBS-2200-SB	Replacement Stationary Blade for .125 Band Tools
DBS-2200-MB	Replacement Movable Blade for .125 Band Tools
Tool Calibration Instrumentation
DBS-CG4D	Laboratory Verification Instrument (Electronic) for DBS-2100 & DBS-2200 series band tools
DBS-CG7	Field Verification Inspection Gage for DBS-2100, M81306/1C
DBS-CG8	Field Verification Inspection Gage for DBS-2200, M81306/1D
Banding Application Kits
DMC2058A	.125 & .250 Banding Tool Kit with stamped buckle bands
Bands & Split Rings
DBS-128-3	M85049/128-3 .250¹ wide x 14.25″ long EMI/RFI Band (Stamped Buckle, Flat)
DBS-128-4	M85049/128-4 .250¹ wide x 14.25″ long EMI/RFI Band (Stamped Buckle, Pre-Coiled)
DBS-128-7	M85049/128-7 .125³ wide x 8.52″ long EMI/RFI Band (Stamped Buckle, Flat)
DBS-128-8	M85049/128-8 .125³ wide x 8.52″ long EMI/RFI Band (Stamped Buckle, Pre-Coiled)
4-1376*	.500 Dia. Split Ring Set (M85049/93-08)
4-1377*	.750 Dia. Split Ring Set (M85049/93-12)
4-1378*	1.00 Dia. Split Ring Set (M85049/93-16)
4-1379*	1.50 Dia. Split Ring Set (M85049/93-24)
DBS-BR1	Band Removal Tool
¹ – Actual width .245 ³ – Actual width .115 *Other diameters avaialble – Consult DMC for details

For more information on Banding

Banding Tool Applications
Banding Proceedures
Two-Step Banding Tool System

One-Step Banding

For M85049/128-3, /128-4, /128-7 & /128-8 Bands

DBS-2100 .250 Wide Band Application Tool (M81306/1A):

DBS-2200 .125 Wide Mini-Band Application Tool (M81306/1B):

VERIFICATION OF ONE-STEP EMI/RFI BAND TOOLS M81306/1C & M81306/1D

The DMC2058A One-Step Band Installation Kit
