Custom Stripmaster^® Wire Strippers & Custom Stripmaster^® Lite Wire Strippers

Strips 30 through 10 AWG solid or stranded wire. Die-type blades assure accuracy and precision stripping. Counter-bored holes sized to insulation and inner stripping hole sized to conductor. Counter-bored holes precisely center conductor to prevent unwanted conductor contact. Custom Stripmaster^® Lite is three-fourths the size of Custom Stripmaster^® Wire Stripper. Requires one-third less hand pressure for each strip actuation. Lever action provides stripping and slug removal in on step. Cleanly strips wire up to 7/8 in. (22mm). Contact us for complete cataloge number and listing.

Strips #10 AWG to #30 AWG solid or stranded wire
Die-type blades allow precision stripping
Counterbored hole size precisely centers wire to prevent unwanted conductor contact
MIL-spec blades dispense unwanted insulation
Optional short stop latch and transparent wire stop
Custom Stripmaster® Lite is three-quarters the size of Custom Stripmaster® Wire Stripper
Custom Stripmaster® Lite requires one-third less hand pressure for each strip
Cushioned, non-slip comfort-grip handles
Engineering Service and made-to-order blades available.

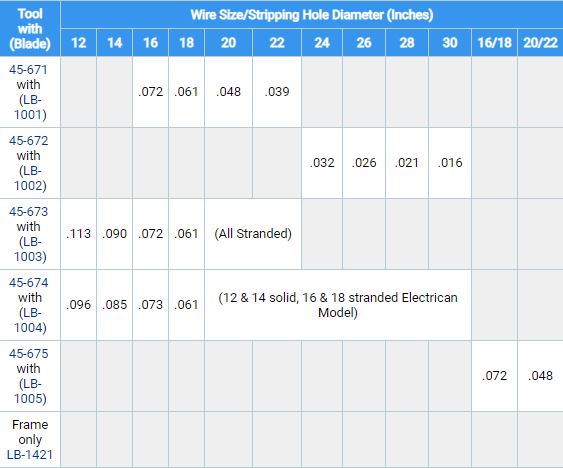

Stripmaster © & Stripmaster © Lite Wire Strippers

Excellent production stripper for #8 AWG to #30 AWG wire
Knife-type blades
Wire Gripper holds wire centered in stripping hole
Lever action offers stripping and slug removal in one step
Cleanly strips wire up to 7/8 inch (22mm)
Reduces nicking, cutting and fraying of commercial wire
Stripmaster® Lite is designed for people with small hands
Stripmaster® Lite is three-quarters the size of the standard Stripmaster® Wire Stripper
Stripmaster® Lite requires one-third less hand pressure for each strip actuation
Cushioned, non-slip comfort-grip handles

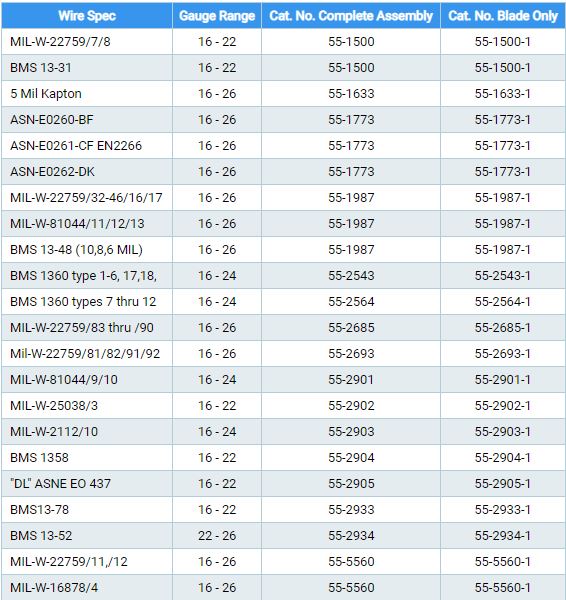

Ergo-Elite © Wire Stripper

Ergonomically engineered for superior comfort, balance and control
Tool constructed of rigid polyurethane reinforced with carbon fiber providing excellent strength at 40% the weight of metal hand tools
NEW unmatched Mil-Spec precision blades with a patented, revolutionary design
One-step stripping action, grips, penetrates and removes wire insulation with unmatched precision in one effortless squeeze
The Ergo-Elite Stripmaster Wire Stripper is very application specific. Free Wire Application Service is recommended
Consult IDEAL for available part numbers

IDEAL Lite-Strip™ Optical Fiber Stripper

Precisely strips outer cable jacket insulations, tight buffer tube insulations and mechanically strippable coatings. Built-in blade guides ease positioning of optical fiber in the proper stripping hole. Plastic grips offer comfort and handling ease. Optional, adjustable Wire stop.

45-350, IDEAL Lite-Strip™ Optical Fiber Stripper (900µ/250µ)

45-351, IDEAL Lite-Strip™ Optical Fiber Stripper (900µ/500µ)

IDEAL Swivel-Blade^® Cable Strippers

Used for both end or center stripping of coaxial and power cables from 1/4 in. through 1-1/2 in. O>D> Strips insulation up to 5/32 in. thick including PVC, rubber, Neoprene, Teflon, Polyethylene, Nylon, fiberglass, and fabric.

45-128, NSN# 5110-01-377-2274

45-129, NSN# 5110-01-377-2344

STP Stripping System

The programmable Shielding Twisted Pair Cable Stripping System handles a variety of strip lengths and cable diameters. This hot-blade, thermal stripping system stores up to 500 batch programs for frequently run jobs in its non-volatile battery back-up memory. Strip length is programmable for either inches or millimeters, and can be variably adjusted in preset increments from 1 in. (25.4 mm) to 6 in. (152.44 mm). Automatically adjusts to the size of cable being stripped, with a maximum of 0.3125 in. (7.9 mm). Adjustable power supply can easily be switched from 120V to 220V.

45-930, STP Stripping System

IDEAL Stripmaster^® Model 950

Electrically operated, pneumatic precision production tool. Strips insulation types in the #10 to #30 AWG range. Accommodates up to six different wire guide/blade and strip length configurations. Allows operators to strip six different wire diameters, insulations and strip lengths without switching tools or reinstalling blade sets. Special guides and blades available on request. Meets military and aerospace requirements. Maximum strip length is 5/8 inch.

45-950, Stripmaster^® with individual adjustable strip length

45-950-1, Stripmaster^® with external adjustment knob for common strip length

45-950-4, Permanent Gripper Assembly

Coaxial Cable Strippers

Adjustable blades can be set for any depth to help ensure nick-free strips on a variety of coaxial cable. Also used for twisted-pair wire, tightly wrapped stranded cable, CATV cable, CB antenna cable, SO, SJ, SJT, and other types of flexible power cords. Includes three straight and one round blade.

45-162, NSN# 5110-01-377-2241, Coaxial Cable Stripper, up to 1/8 in. (3.2 mm) O.D.

45-163, NSN# 5110-01-377-2348, Coaxial Cable Stripper, 1/8 in. (3.2 mm) to 7/32 in. (5.556 mm) O.D.

45-164, NSN# 5110-01-377-2243, Coaxial Cable Stripper, 1/4 in. (6.4 mm) to 9/16 in. (14.3 mm) O.D.

45-165, NSN# 5110-01-377-2350, Coaxial Cable Stripper, 3/16 in. (3.2 mm) to 5/16 in. (8 mm) O.D.

IDEAL Ringer™ Shielded Cable Stripper

For precision stripping of most non-round shielded cable and other outer jackets, including extruded Teflon^®, Kapton^®, PVC and Kynar^®, insulations. Spring-loaded head holds cable with consistently accurate tension, removing any need for adjustment. Fixed blades are sized to insulation to prevent inaccurate cuts. Heat-treated, stainless-steel blades for long life.

45-400, Cable diameters up to 1/2 in. 45-401 5 Mil insulation thickness including Kapton^®

45-402, 8-10 Mil insulation thickness including Kynar^®

45-403, Cable diameters from 0.12 in. to 0.22 in.

45-404, With “deep-V” for larger cable diameters up to 3.030 in.

ReflexT Premium T^®-Stripper Wire Strippers

Ergonomic design for maximum comfort. Curved handles to reduce wrist fatigue. Sleeves that extend to stripping head to cushion thumb and fingers. Textured, no-slip sleeves for a sure, easy grip. (Wire Range: 10-18 AWG)

45-415, 10-18 AWG solid

45-416, 16-26 AWG stranded

45-417, 22-30 AWG solid

45-418, 8/16 AWG stranded
