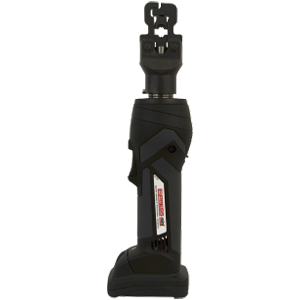

Elpress Mini PVL130L Electro Hydraulic Crimping Tool

For crimping of standard Transformer tap changers 30A and 63A

PVL 130L Battery Operated Crimping Tool replaces Elpress PV130L

The Elpress mini tool PVL130L in a new sleek design with a high performance Li-Ion battery that streamlines your work with its improved battery capacity. To be used for crimping of standard tap changers for 30A and 63 A.

CHARACTERISTICS:
• Single-handed operation for easy control of all tool functions
• Powerful crimping head ensures long service life
• Easy to use due to its low weight
• High-performance 10.8 V Li-Ion battery – with indication of charge status
• Rotatable head
• Easy and comfortable to use with one hand thanks to its ergonomic 2-component housing with grip-friendly protection
• Automatic return of dies when crimping is completed

TECHNICAL DATA PVL130L:
Crimping force max 13 kN
Crimping range 30 A and 63 A
Crimping process about 3 s (dependent on material)
Battery voltage 10.8 V
Battery capacity 1.5 Ah, Li-Ion
Charge time about 40 minutes.
Weight including battery 1.5 kg
Ambient temperature -10°C to +40°C
Dimensions 325 x 85 x 60 mm

Transformer Tap Changer	Die No.	Elpress Crimping Dies LB7
Size Ø 5 mm	Elpress LB5
Size Ø 7 mm	Elpress LB7

*Technical Data Subject to Change Without Notice
