The terminals for Cu conductors 0.75 mm² to 1000 mm² are made of copper 99.9%

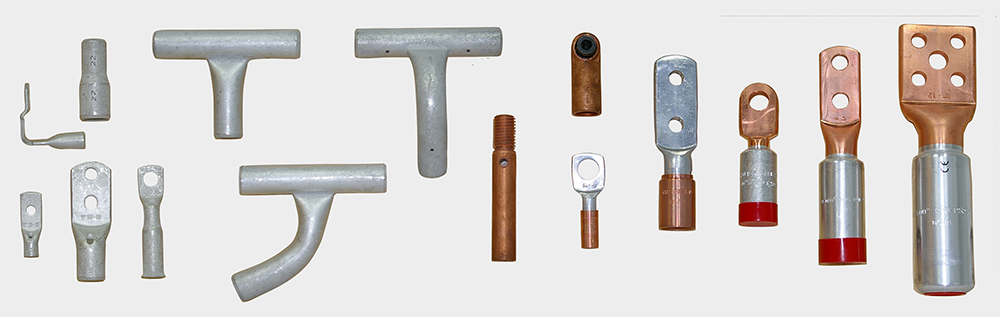

As a standard, we make tube terminals (type KR/KRF/KRD/KRT), jointing sleeves (type KS/KSF/KSD/KST) and C sleeves, but also largely customised connectors. The Elpress system fits both stranded conductors, as per IEC 60228 class 2, and flexible conductors as per IEC 60228 class 5.

The cable clips (KR/KRF/KRD) are mainly used to end for connection to busbars and device outlets of copper.
Splicing sleeves (KS/KSF/KSD) are used, mostly, for splicing of copper conductors in cable assemblies. They can also be used for straight splicing of earth lines.
With a branching sleeve, type C, one splices and branches earth lines used in e.g. lightning conductor installations and the like.

UL-approved terminals

UL is a US standard that is also internationally accepted. Elpress standard Cu terminals of type KRF/KSF are UL approved as per file no. E205350. Cu terminals of type KR/KS, KRF/KSF are for stranded and flexible copper cable, class 2 and 5 as per IEC 60228 and has a work area of 1-500 mm².

DNV-approved terminals

Elpress KR/KS, KRF/KSF terminals agree with DNV’s rules for classification of ships and Det Norske Veritas’ Offshore Standards. The terminals are approved for installations on ships and mobile “offshore” units

Check the number of crimps

In our standard range, there are tube terminals with one or two holes, straight or with an angle 45° and 90° and terminals with measurements as per DIN 46235. In addition to these, there are through connectors for service and road lighting cables (System CUT) and tube terminals and connectors for Excel cable 10 mm². Normally, one crimp is required up to 150 mm² and two or three crimps for larger cross-sectional areas. Check the number of crimps recommended on the package label before crimping is done.

Marking

The copper terminals are marked with logotype, cable area and type number for a hexagon die. When an adequate crimping is done with the right tool, Elpress’ crimping dies make an impression on the sleeve so that all connections can be checked afterwards. In the tools, there is a built-in locking system that ensures that the entire crimping process is completed – a prerequisite for professional and quality-assured work.
