For Wire Terminations and Similar Applications

THE DEPENDABLE ALPHATRON™ TENSILE TEST SYSTEM

Now available from DMC is a line of Electronic Tensile Test Systems which may be used in conjunction with SPC Programs or other Quality Control disciplines in both OEM and maintenance applications. The electronic digital readout displays are a fast and reliable source of test data.

The rugged construction and the portable design of these test machines make any of them a superior choice for on-site or laboratory use in an infinite variety of applications. The operation of the equipment is simple yet versatile, and DMC will customize the gripping jaws or other components to make test sample installation and removal an easy task.

Models are available with output display readings in Pounds, Newtons, and/or Kilograms to conform to the requirements of the user’s system. Units are available for either 115 or 230 volt power input.

It’s only natural that the company which supplies the best wire termination tools and equipment would add the very best Digital Tensile Testers to further meet the demand for fewer sources and improved support through a wider range of user needs.

The MPT-250C Motorized Wire Crimp Pull Tester is ideal when a “constant rate of pull” or “force hold” test is desired. The unit has a range of 2.5 lbf to 250 lbf and a full color LCD touchscreen interface. Includes data capture capability for exporting test data to a PC via USB or RS-232 and can test crimp strength on terminations up to size 10 AWG Mil-Spec, commercial, and automotive applications.

The HPT-200 Hand-Held Pull Tester blends the accuracy and rugged design of the Alphatron pull testers into a self-contained, portable, rechargeable battery powered unit. It is ideal for testing crimp strength up to size 10 AWG in Mil-Spec applications, and size 10 AWG in commercial and automotive applications.

The PT-150H Manual Wire Crimp Pull Tester is oriented horizontally and ideal for testing crimp strength up to size 10 for Mil-Spec applications, and size 4 AWG for commercial and automotive applications.

The PT-40XP Manual Wire Crimp Pull Tester was specially designed to test the lower range tensile values of the medical and telecommunications industries, from 1 to 40 lbs.

GENERAL SPECIFICATIONS
	MPT-250C	HPT-200	PT-150H	PT-40XP
Capacity	250 lb 113 kg 1112 N	200 lb 90.7 kg 889 N	150 lb 68.0 kg 667 N	40 lb, 170 N
Accuracy	± 0.5%	± 0.5%	± 0.5%	± 0.5%
Resolution	0.1 lbf	0.1 lbf	0.1 lbf	0.1 lbf
Display Type	Digital Display w/ Peak Hold Reading	Digital Display w/ Peak Hold Reading	Digital Display w/ Peak Hold Reading	Digital Display w/ Peak Hold Reading
Display	Full Color LCD Touchscreen	LED with .56″ high digits	LED with .56″ high digits	LED with .56″ high digits
Electrical	115 VAC 50/60 Hz or (Built in) 230 VAC 50/60 Hz	12 VDC Internal Battery with 115 VAC 50/60 Hz Charger (Optional: 230 VAC 50/60 Hz Charger)	115 VAC 50/60 Hz or (Optional) 230 VAC 50/60 Hz	12 VDC Internal Battery with 115 VAC 50/60 Hz Charger (Optional: 230 VAC 50/60 Hz Charger)
Operating Temperature	50°F to 100°F (10° to 38°C)	50°F to 100°F (10° to 38°C)	50°F to 100°F (10° to 38°C)	50°F to 100°F (10° to 38°C)
Height	6 in. (15.24 cm)	2 in. (5.08 cm)case	5 in. (12.7 cm)	5.9 in. (15 cm)
Width	13.3 in. (33.78 cm)	9.5 in. (24.13 cm)case	8.5 in. (21.6 cm)	11.75 in. (29.8 cm)
Depth	11 in. (27.94cm)	6.25 in. (15.87 cm)case	16 in. (40.6 cm)	5.8 in. (14.7 cm)
Weight	23.64 lbs (10.72 kg) (less options)	2.5 lbs (1.13 kg)(case and hand unit)	15.2 lbs (6.9 kg)	5.7 lbs (2.6 kg)
Shipping Weight	40.6 lbs (18.41 kg) (w/ case and standard grips)	2.5 lbs (1.13 kg) (case and hand unit)	21 lbs (9.5 kg)	12.6 lbs (5.7 kg)

Discontinued Models
MODEL MPT-250B	MPT-250B Datasheet: MPT-250B.PDF
MODEL MPT-200A	MPT-200A Datasheet: MPT-200A.PDF

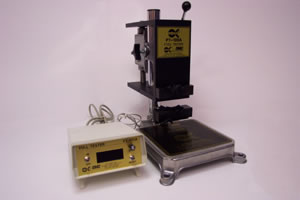

MODEL PT-100	PT-100 Datasheet: PT-100.PDF
MODEL PT-100A	PT-100A Datasheet: PT-100A.PDF
MODEL PT-150B	PT-150B Datasheet: PT-150A.PDF

Minimum Tensile Strength Requirements (For Reference Only)
Wire Size (AWG)	Per AS7928 (LBS) (MIL/DoD Adopted)	Per UL 486 (LBS)
26	7	–
24	10	–
22	15	8
20	19	13
18	38	20
16	50	30
14	70	50
12	110	70
10	150	80
8	225	90
6	300	100
4	400	140
2	550	180
1	650	200
0	700	250
00	750	300
000	825	350
0000	875	450
