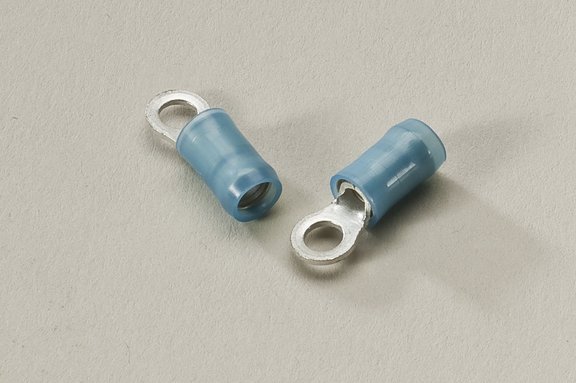

M7928/4-101 to -110,
Sizes 22 to 14

Type:	Class 1 Insulated Terminals, Radiation Resistent
Insulation:	Polyvinylidene Fluoride (PVF2)
Terminal Body & Sleeve:	Copper, ASTM B-152
Plating:	Tin, ASTM B-545
Max Temp Rating:	105° C

AWG	WIRE SIZE (MM)	TERMINAL P/N	HX3 DIE (MIL-APPROVED)	HX4 DIE (MIL-APPROVED, MULTI CAVITY)	HX4 DIE (MIL-APPROVED, SINGLE CAVITY)	HX4 DIE (SINGLE CAVITY)	M22520/40-01 TOOL (MIL- APPROVED)
#22-18	0.26-0.96	M7928/4-101	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	M7928/4-102	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	M7928/4-103	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	M7928/4-104	X511	Y501	Y1115*	Y672	AMT4001
#22-18	0.26-0.96	M7928/4-105	X511	Y501	Y1115*	Y672	AMT4001
#16-14	1.04-2.62	M7928/4-106	X511	Y501	Y1116*	Y671	AMT4001
#16-14	1.04-2.62	M7928/4-107	X511	Y501	Y1116*	Y671	AMT4001
#16-14	1.04-2.62	M7928/4-108	X511	Y501	Y1116*	Y671	AMT4001
#16-14	1.04-2.62	M7928/4-109	X511	Y501	Y1116*	Y671	AMT4001
#16-14	1.04-2.62	M7928/4-110	X511	Y501	Y1116*	Y671	AMT4001

* QPL in Progress.

* Die set includes insulation adjustment feature.

AWG	TERMINAL P/N	BURNDY	HOLLINGSWORTH	MOLEX	PANDUIT	T&B	TYCO
#22-18	M7928/4-101	–	–	–	–	–	53406-1
#22-18	M7928/4-102	–	–	–	–	–	53407-1
#22-18	M7928/4-103	–	–	–	–	–	53409-1
#22-18	M7928/4-104	–	–	–	–	–	53411-1
#22-18	M7928/4-105	–	–	–	–	–	53412-1
#16-14	M7928/4-106	–	–	–	–	–	53415-1
#16-14	M7928/4-107	–	–	–	–	–	53416-1
#16-14	M7928/4-108	–	–	–	–	–	53418-1
#16-14	M7928/4-109	–	–	–	–	–	53420-1
#16-14	M7928/4-110	–	–	–	–	–	53421-1

NOTE: Component OEM’s instructions shall take precedence over the information presented in these charts. Wire ranges are for reference only
