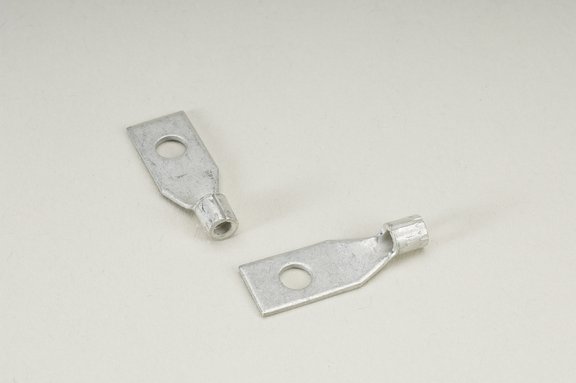

MS21004-15 to -21,
Sizes 12 to 10
| Type: | Class 1 Uninsulated Terminals, Rectangular Tongue |
|---|---|
| Insulation: | N/A |
| Terminal Body & Sleeve: | Copper, ASTM B-152 |
| Plating: | Tin, ASTM B-545 |
| Max Temp Rating: | 175° C |
| AWG | WIRE SIZE (MM) | TERMINAL P/N | HX4 DIE (1 INDENT) | HX4 DIE (2 INDENTS) | GMT SERIES TOOL (1 INDENT) | GMT SERIES TOOL (2 INDENT) |
|---|---|---|---|---|---|---|
| #12-10 | 2.62-6.64 | MS21004-15 | Y554 | Y788 | GMT277 | GMT1005 |
| #12-10 | 2.62-6.64 | MS21004-16 | Y554 | Y788 | GMT277 | GMT1005 |
| #12-10 | 2.62-6.64 | MS21004-17 | Y554 | Y788 | GMT277 | GMT1005 |
| #12-10 | 2.62-6.64 | MS21004-18 | Y554 | Y788 | GMT277 | GMT1005 |
| #12-10 | 2.62-6.64 | MS21004-19 | Y554 | Y788 | GMT277 | GMT1005 |
| #12-10 | 2.62-6.64 | MS21004-20 | Y554 | Y788 | GMT277 | GMT1005 |
| #12-10 | 2.62-6.64 | MS21004-21 | Y554 | Y788 | GMT277 | GMT1005 |
| AWG | TERMINAL P/N | BURNDY | HOLLINGSWORTH | MOLEX | PANDUIT | T&B | TYCO |
|---|---|---|---|---|---|---|---|
| #12-10 | MS21004-15 | – | – | – | – | C486 | – |
| #12-10 | MS21004-16 | – | – | – | – | C483 | – |
| #12-10 | MS21004-17 | – | – | – | – | C482 | – |
| #12-10 | MS21004-18 | – | – | – | – | C481 | – |
| #12-10 | MS21004-19 | – | – | – | – | C485 | – |
| #12-10 | MS21004-20 | – | – | – | – | C484 | – |
| #12-10 | MS21004-21 | – | – | – | – | C480 | – |
NOTE: Component OEM’s instructions shall take precedence over the information presented in these charts. Wire ranges are for reference only
