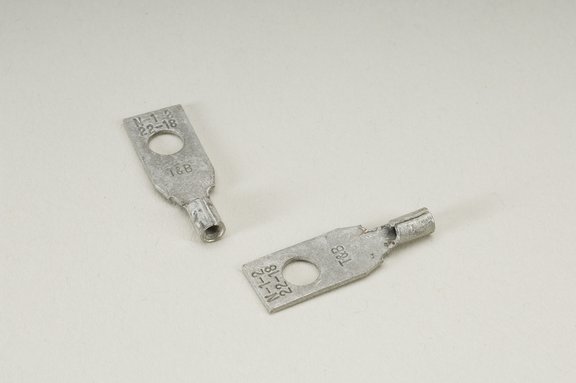

MS21004-8 to -14,
Sizes 16 to 14
| Type: | Class 1 Uninsulated Terminals, Rectangular Tongue |
|---|---|
| Insulation: | N/A |
| Terminal Body & Sleeve: | Copper, ASTM B-152 |
| Plating: | Tin, ASTM B-545 |
| Max Temp Rating: | 175° C |
| AWG | WIRE SIZE (MM) | TERMINAL P/N | HX4 DIE (1 INDENT) | HX4 DIE (2 INDENTS) | GMT SERIES TOOL (1 INDENT) | GMT SERIES TOOL (2 INDENT) |
|---|---|---|---|---|---|---|
| #16-14 | 1.04-2.62 | MS21004-8 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS21004-9 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS21004-10 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS21004-11 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS21004-12 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS21004-13 | Y554 | Y788 | GMT277 | GMT1005 |
| #16-14 | 1.04-2.62 | MS21004-14 | Y554 | Y788 | GMT277 | GMT1005 |
| AWG | TERMINAL P/N | BURNDY | HOLLINGSWORTH | MOLEX | PANDUIT | T&B | TYCO |
|---|---|---|---|---|---|---|---|
| #16-14 | MS21004-8 | – | – | – | – | B486 | – |
| #16-14 | MS21004-9 | – | – | – | – | B483 | – |
| #16-14 | MS21004-10 | – | – | – | – | B482 | – |
| #16-14 | MS21004-11 | – | – | – | – | B481 | – |
| #16-14 | MS21004-12 | – | – | – | – | B485 | – |
| #16-14 | MS21004-13 | – | – | – | – | B484 | – |
| #16-14 | MS21004-14 | – | – | – | – | B480 | – |
NOTE: Component OEM’s instructions shall take precedence over the information presented in these charts. Wire ranges are for reference only
